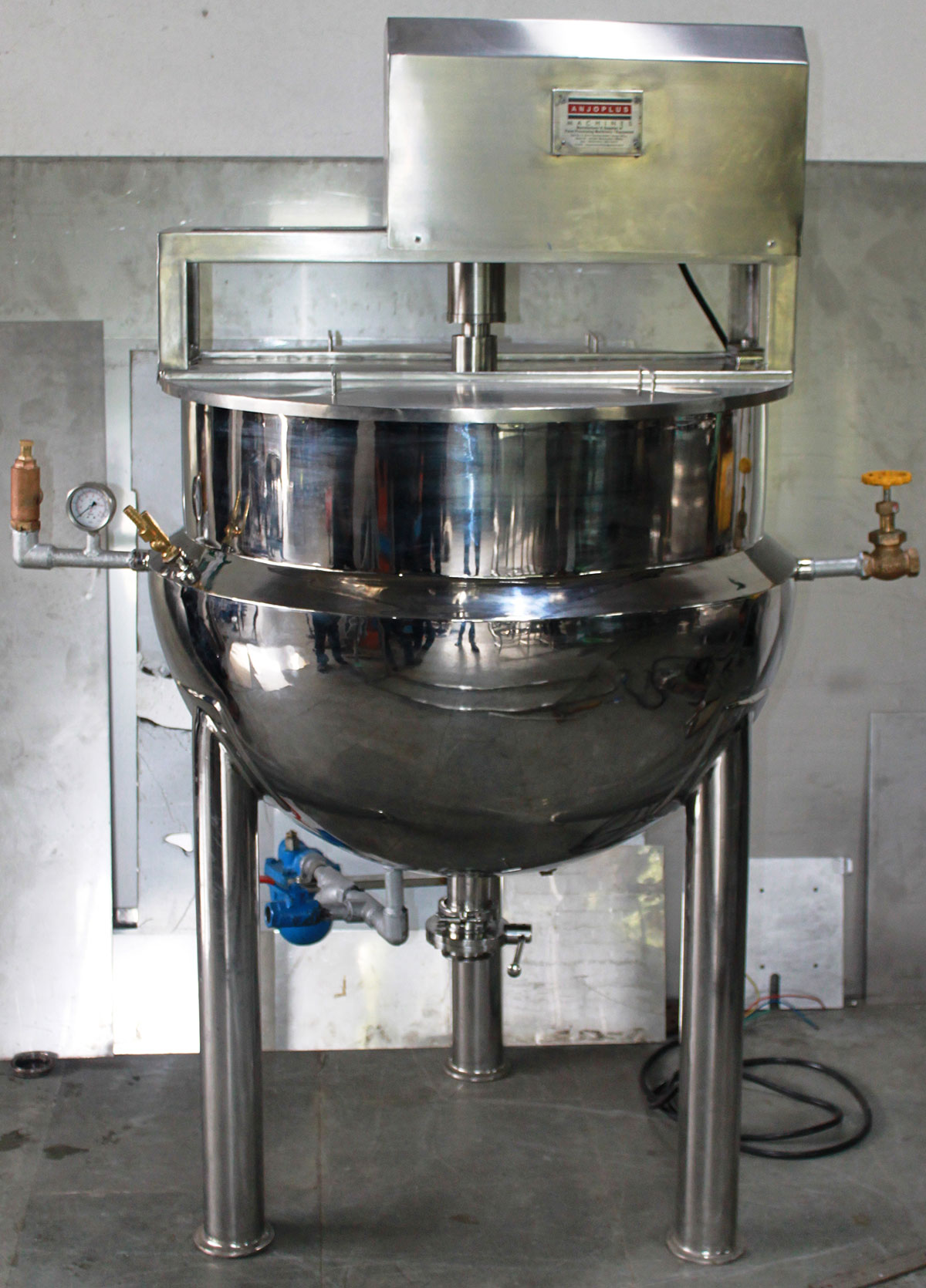

Steam Jacketed Kettles
Function
:
Cooking / Concentrating / preparation of sugar syrup and general purpose heating and Sugar dissolving Kettle.
Construction
:
Hemi spherical inner bowl made out of 4 mm thick sheet
Outer bowl made of 5 mm sheet.
Ptfe scrapers with stirrer
Mm Steam jacket with ribs for strengthening.
Heavy duty square tube structure.
Complete with all necessary steam fittings like pressure gauge, Temperature
Gauge, Steam inlet valve, steam safety valve, Air vent, Y Type strainer, steam trap etc.
M.O.C
:
SS 304 / SS316
Input Capacity
:
100, 250, 500, 1000 ltrs
